przewody grzejne en

PRODUCTS

heating cables

przewody grzejne_1
Przewody Grzejne-1
przewody grzejne 2

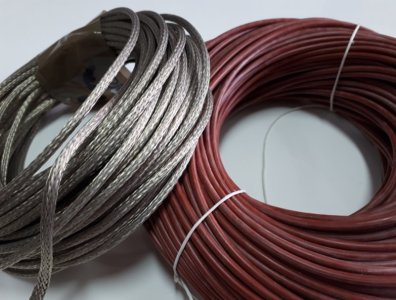

The FlexiWarm 10, FlexiWarm 20+ and FelxiWarm40+ cables are CB certified to the requirements of IEC 60800:2021. Certificate No. EN 2 0681 (IEC System of Conformity Testing an Certification of Electrical Equipment and Components – IECEE CB Scheme)

Flexible heating cables can operate at DC or AC voltages not exceeding 500 V. It is possible to use them in conditions of increased humidity, even up to 95%

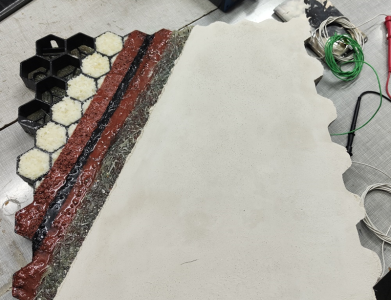

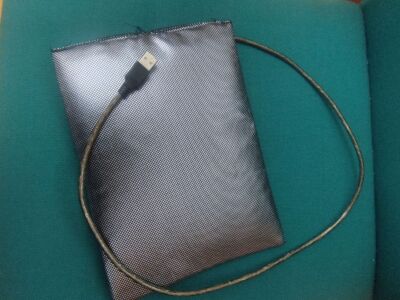

The cables are very versatile heating elements due to their wide heating temperature range, high flexibility and light weight. The heating cables can be arranged in the form of lamellas with a large bending radius, coils and strands, as well as being formed into flexible heating mats or encapsulated into rigid panels.

The power is selected experimentally and/or theoretically taking into account a temperature limit of 180°C. The cables can be protected with an additional shock-protection shield.

Such heating elements can be used in applications of various scales:

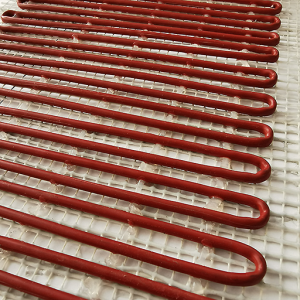

• Underfloor heating, heating of a selected zone/surface,

• Heating of valves and components with complex geometry,

• Heating of chutes and conveyor belts of hygroscopic or thermostatically sensitive materials,

• Heating of vessels, tanks and chemical reactors.

przewody grzejne 3

DOWNLOAD:

  1. Leaflet
  2. Certification of heating cables
  3. FlexiWarm installation instructions
  4. FlexiWarm+ installation instructions
  5. “FlexiWarm heating cables” data sheet
  6. “FlexiWarm+ heating cables” data sheet
  7. “Heated carpet” data sheet
  8. “Beehive thermostating” data sheet
